MicroPython and BASIC

Ruby is the language Family mruby is built around, but it is not the only one that runs on it. There are four: Ruby, MicroPython, BASIC and Lua.

They are not modes you switch into. A .py file and a .bas file sit in the launcher next to the Ruby apps, start the same way, and run at the same time as each other.

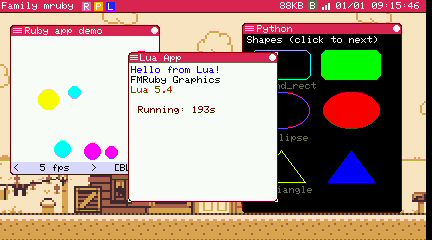

Three windows on one desktop: a Ruby demo, a Lua demo and a Python demo, all running
Three VMs at once — Ruby, Lua and MicroPython, each in its own window and its own heap
Extension Runs on Notes
.rb PicoRuby The main language. Everything in the API Reference
.py MicroPython The same app framework as Ruby: windows, drawing, sprites, sound. One Python app at a time
.bas FMRuby BASIC Family BASIC compatible. Its own text screen and sprites
.lua Lua 5.4 Functions on_create / on_update / on_event and a global gfx; the system draws the window and runs the loop
.wasm WAMR Apps written in C, TinyGo, Rust or Zig and compiled to WebAssembly on a PC. Not on the ESP32-S3 boards. See WebAssembly Apps (development version)

The functions an app can call are defined once, in the firmware's type definitions, and each language's side is generated from there. Ruby, Lua, MicroPython and the WebAssembly languages therefore see the same names in the same argument order — draw_text(x, y, text, color) everywhere — with each language's own spelling for what Ruby writes as a Symbol, a keyword argument or a method ending in ? (BASIC keeps its own statements).


MicroPython

A .py file is an app like any other. It uses the same framework Ruby apps use — subclass FmrbApp, override the lifecycle methods, start it. Unlike a Ruby file, a Python file still ends with the line that starts the app:

class PythonDemoApp(FmrbApp):
    def on_create(self):
        Log.info("started on " + self.platform)
        self.clear_user_area()   # (0, 0) is the top-left inside the frame, as in Ruby
        self.gfx.present()

    def on_update(self):
        return 500          # ms until the next turn

    def on_event(self, ev):
        if ev.get("type") == "mouse_up" and ev.get("button") == 1:
            self.next_page()

PythonDemoApp().start()

Windows, events and drawing are reachable through the built-in _fmrb module, wrapped in the framework classes an app subclasses. FmrbApp, FmrbGfx, FmrbAudio, FmrbFile, SpriteImage, SpriteInstance and Log are already in the app's namespace — there is nothing to import for them.

The demos are /app/python/python.app.py (the twin of the PicoRuby demo, page by page) and /app/game/breakout/breakout.app.py, a whole game: sprites for the things that move, tiles for the things that do not, Japanese text, a tune on the main sound chip with effects on the other. Robo Explorer has a Python pilot as well.

Where it differs from Ruby

Ruby Python
Time Machine.board_millis ticks_ms(), or FmrbApp.uptime_ms()
A query method FmrbFile.exist?(path) FmrbFile.exist(path) — the ? is dropped
String length String#length counts characters len() counts bytes
Another file require "/app/..." import mymodule — beside the app, or /usr/lib/python
The framework, from that file Visible Not visible. Pass what it needs as arguments
A timer's callback A block A function: self.set_timer(500, self.blink)

Splitting an app across files works, but the framework classes live in the app's namespace and not in the module's:

# in the app
import mypanel
mypanel.draw(self, state)

# in mypanel.py
def draw(app, state):
    app.gfx.draw_text(...)   # reached through the app, not named directly

One file is limited to 64 KB.

Sound

The sound chip is reached through FmrbAudio, the same shape as in Ruby. A tune goes on the main instance and short effects on the other, so an effect does not stop the music:

audio = FmrbAudio(self)
audio.load_fmsq_file(1, "/cache/app/mygame/bgm.fmsq")   # sync_file it across first
audio.play_slot(1, FmrbAudio.MAIN)
audio.note_on(FmrbAudio.CH_PULSE2, 988, 12, 2, 0)       # an effect, on the other

Time an effect's end by ticks_ms(), not by counting frames: a heavy frame stretches the sound.

The rest of Ruby's FmrbAudio is there too: stop, pause, resume, nsf_status() (a dict or None), set_main_volume(percent) (Ruby's main_volume =), play_wav(path), stop_wav() and load_fmsq(slot, data). Log.info and its siblings put the app's name at the head of the line, as they do in Ruby.

Drawing

FmrbGfx has every drawing method Ruby's has, with the same names and argument order: the shapes including arcs, ellipses and triangles, get_pixel, blend_rect, images and masks, the viewport and sprite clipping, file_status, FmrbGfx.rgb_to_332 and the rest. The ones with optional arguments (present, draw_text, set_font, draw_image, draw_tile, sync_file, ...) take them as Python defaults:

self.gfx.set_font(FmrbGfx.FONT_JA, 12)
self.gfx.draw_text(4, 4, "こんにちは", FmrbGfx.BLACK)
self.gfx.draw_text(4, 20, "mixed 日本語", FmrbGfx.BLACK, mixed=True)

clear has no default: pass the colour (self.gfx.clear(FmrbGfx.BLACK)). canvas_id, origin_x, origin_y, area_width and area_height are read-only properties.

Limitations

MicroPython's design pushes back in a few places, and these are worth knowing before you start:

One Python app at a time. MicroPython keeps its entire VM state in globals, so unlike mruby and Lua it cannot be instantiated twice. Starting a second one is refused at spawn with "Another Python app is already running." Ruby, Lua and BASIC apps are unaffected and can run alongside it.

Built-in modules only. array, builtins, collections, gc, io, math, micropython, struct, sys and random are in. time, json, os, re, binascii, hashlib, heapq and deflate are not — they live in MicroPython's extmod/, which this build does not carry. For waiting, return a delay from on_update rather than sleeping. (random is seeded from the clock, so a run differs from the last; call random.seed(n) to repeat one.)

Files are read and written whole, through FmrbFile, the same module Ruby apps have. FmrbFile.read(path) returns the whole file as bytes (or None), and write, append, exist, size, delete, mkdir and list(dir) take a path — see Files & I/O. There is no reading a file a piece at a time: open() exists but raises OSError, because failing out loud beats being silently absent. io.StringIO and the rest of the in-memory objects work.

Integers go up to 64 bits, so FmrbApp.uptime_us() keeps counting past the 18 minutes a small integer holds on the ESP32; anything wider raises OverflowError.

Strings are bytes. This build has no Unicode strings, so len("日本語") is 9 and indexing is by byte. For a width in pixels use FmrbGfx.text_width, which walks the UTF-8.

No REPL and no threads. Creating tasks is the system's job, not a guest VM's; use a generator for concurrency inside an app.

256 KB of heap per app, fixed. Running out raises MemoryError, and an uncaught one ends the app with a traceback in the log, exactly as running out of memory does in Ruby.

A force-stop skips on_destroy. Stopping an app that is inside a long Python loop unwinds the bytecode, so neither destroy nor on_destroy runs. Resources are reclaimed by the C side either way, but an app cannot rely on on_destroy to save anything — do that at a boundary in on_update. Lua behaves the same way.

Not provided: tile map classes (draw_tile is there — lay them out yourself), load_image (write it as sync_file, create_image and draw_image), video, GfxBlock, extra canvases, the p5 layer, the microphone and MIDI out.


Lua

A .lua app runs on a shell the system provides in C: the system makes the window, draws its frame and runs the loop, and the app only defines functions. The shape follows the Ruby app's:

local seconds = 0

function on_create()            -- once, after the window is made
  FmrbApp.clear_user_area()     -- the area in the theme colour, frame redrawn
  gfx:draw_text(2, 2, "Hello", FmrbApp.THEME_TEXT)
  gfx:present()
end

function on_update()            -- called again after the ms it returns (330 if not a number)
  seconds = seconds + 1
  return 1000
end

function on_event(ev)           -- one input at a time
  if ev.type == "key_down" and ev.character == string.byte("q") then
    FmrbApp.stop()
  end
end
  • The top level of the file runs once first, to define functions and variables; gfx does not exist yet there. A file that defines none of on_create, on_update and on_event does not start, and an error window says so.
  • Optional: on_destroy, on_suspend / on_resume, on_resize(w, h) (after the shell has repainted the area and the frame) and on_quit_request (Ctrl+Q; closes when absent).
  • An error in a function shows an error window with the message and traceback, and the app ends. Do not wait long inside a function: return the wait from on_update. A function that does not return for a second is cut off by the close button and by kill.
  • gfx draws with (0, 0) at the top-left inside the frame, as a Ruby app's @gfx does, and has the methods of Ruby's FmrbGfx with the same names and argument order: fill_rect(x, y, w, h, c), draw_line, fill_circle, draw_ellipse, draw_arc and the rest, draw_text(x, y, text, c [, bg [, mixed]]), set_font(family [, size]), present(). Ruby's Symbols are strings (gfx:set_font("ja", 12)) and records are tables. gfx:clear(c) wipes the whole canvas, frame included; FmrbApp.clear_user_area([c]) wipes the area and redraws the frame.
  • Sizes are functions, read when called: FmrbApp.user_area_width() / user_area_height() for the area, FmrbApp.window_width() / window_height() for the window.
  • Beside drawing, Lua has what Ruby apps have: FmrbAudio.new() and audio:note_on(...), audio:play_wav(path) and the rest; Log.info(msg); FmrbApp.clipboard(), FmrbApp.uptime_ms(), FmrbApp.wallclock(); the window's state and requests (FmrbApp.fullscreen(), FmrbApp.request_fullscreen(on) ...); and whole files through FmrbFile (FmrbFile.read(path), FmrbFile.exist(path) ...). A Ruby method ending in ? drops it in Lua.
  • ev has the same keys as in Ruby, with ev.type a string: "key_down", "key_up", "mouse_down", "mouse_up", "mouse_move", "mouse_wheel", "gamepad_down", "gamepad_up", "gamepad_axis", "kana_mode". Mouse events carry x / y (the area) and wx / wy (the window). The close button, the title bar's window menu and dragging are handled for the app.
  • Colours are FmrbGfx.BLACK and the other constants, and the theme's FmrbApp.THEME_WINDOW_BG, THEME_TEXT, THEME_BORDER and the rest.

The sample is /app/lua/lua.app.lua.


FMRuby BASIC

A BASIC interpreter built to be compatible with Family BASIC — the BASIC that shipped for the Famicom — down to its screen, its sprites and its sound statements.

This is not Ruby with a BASIC syntax on top: it is a separate interpreter written in C++, with Family BASIC's semantics, its 28 x 24 character screen, and its PLAY / BEEP sound.

Running a BASIC program

Write it in the editor and press F5

The quickest route. Open the Editor, type the program, press F5.

  • If the file has no name yet you will be asked for one. Save it under /home or /app — programs elsewhere will not run
  • Ctrl + Q returns you to the editor from a running program, even a fullscreen one. Then F5 runs it again

Put it in the launcher

Drop a .toml next to the .bas with the same name:

/app/basic/mygame.app.bas
/app/basic/mygame.app.toml
app_handle_name = "mygame"
app_screen_name = "My Game"
app_screen_name_ja = "マイゲーム"
# .bas starts fullscreen unless you ask for a window:
#default_window_mode = "window"

The launcher builds its list when the desktop starts, so right-click inside the launcher to rescan after adding a file.

A .bas without a .toml still runs from F5 or from the shell; it just uses the filename as its name.

The screen

Family BASIC's screen is fixed at 28 characters by 24 lines (224 x 192 pixels). Started fullscreen, it is centred and the surrounding area is filled with black — the same shape the original had.

The maze sample running fullscreen: a 28x24 character screen centred on black
The maze sample from /app/basic, drawn entirely out of characters

What is in it

The language core, the text screen, sprites with automatic movement, controller input, PLAY and BEEP, character tables and palette selection, error handling and SAVE are all implemented. Three sample programs ship in /app/basic — shoot, maze and music — beside the BASIC app demo, which is a BASIC program launched as an ordinary app.

Compatibility

Every known difference from Family BASIC V3 is written down and classified — resolved, deliberate difference, waiting on measured data, or out of scope. Some deliberate choices worth knowing:

  • IF expr THEN stmt skips the : statements after it when the condition is false (the Microsoft-family behaviour)
  • PLAY is asynchronous, so music continues while the program runs
  • LOAD / LOAD? do nothing inside a program — on the original they were direct-mode commands. SAVE is implemented
  • Ctrl + Q stops a running program. The original had no way out of a fullscreen program

Its MML is not the MIDI MML

BASIC's PLAY uses Family BASIC's MML syntax. The MIDI layer has its own MML for Ruby apps. They are separate implementations and the dialects differ — do not copy a string from one to the other and expect it to play.


Which one to reach for

  • Ruby for anything that needs the full API — networking, MIDI, sprites, the peripheral bus. This is the language the system is designed around
  • MicroPython if Python is what you know. Expect a smaller standard library than you are used to, and one Python app at a time
  • BASIC if you want the Family BASIC experience, or you are following a listing from a magazine of the era
  • Lua for a small, fast script
  • C, TinyGo, Rust or Zig if you would rather write in one of those and compile it on a PC — see WebAssembly Apps. Not on the ESP32-S3 boards
